Working length | Working width | Max working thickness | Working table | XY axis moving speed | Saw unit moving speed |
|---|---|---|---|---|---|
| 1800~2500mm | 400~1000mm | 60mm | Pass-through vacuum pads table with top pressed device | 50m/min | 5~15m/min |
Main cutting saw motor power | Scoring saw motor power | Main cutting saw speed | Scoring saw speed | Vacuum pump motor power | Main saw blade size |
| 7.5KW*4 PCS | 1.5KW*4 PCS | 6000r/min | 9000r/min | 3KW | ø40*300mm |
Scoring saw blade size | Total motor power | Machine size | Machine weight | ||
| ø22*120mm | AC380V/50HZ 42KW | Approx. L5500×W2800×H2450mm | Approx. 5500kgs | ||
Main component supplier:
Linear orbits: TBI & SHAC
Electric components
Schneider
DELTA for PLC, SERVO MOTOR, INVERTER
Screw guide lubrication: PC controlled Self-lubrication system
Details:：

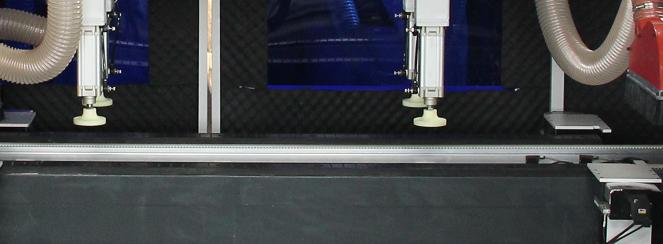

1、With top pressed device and vacuum pads table on bottom, it can assure the working piece will remain steady during cutting.
2、Sub-saw units design, scoring saw installs with the automatic thickness measure system.
3、Servo alignment system, positioning accuracy and fast.
4、Scanned device as option, fit for customized made order.
Characteristics of CY1125 CNC four-side cutting saw:：
1. Industrial production model, heavy-duty all-steel structure welded, and treated by material stress analysis and tempering effect, it is firm and not deformed.
2. Delta PLC, large-screen touch screen control.
3. The constant power special spindle has a large torque, suitable for heavy cutting, and the motor bearing is a high-precision ceramic bearing with low noise and long life.
